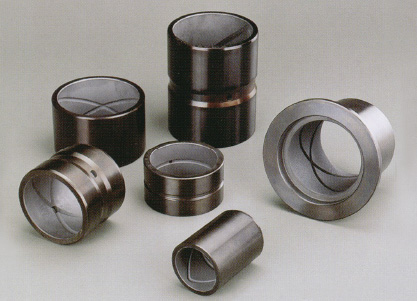

FRB-200 Steel Base Finishing Bearings

Structure FRB200 high quality carbon steel as the base, through the rational design of oil, coated with grease during assembly makes it a long time at work when needed enough storage oil and can be evenly distributed in the surface of the bearing and shaft on, so as to achieve a long life the purpose of reducing the frequency of refueling; the same time because of the special oil system can work intrusion into the dust and other foreign matter bearing, thus reducing the maximum use of the bearing during the impact. FRB200 Another particularity is the bearing surface of the work handled through a special process, so that the surface covered by a layer of special solid lubricant, this layer of a special lubricant in the initial action quickly shifted to grinding the surface of the shaft, thereby rapidly reducing the coefficient of starting friction, improve wear resistance of the bearing.

Tech. Data

FRB standards FRB200C FRB200G FRB250S FRB250S5 FRB250S5
Substrate S45C GCr15 S45C GCr15 GCr15
Linear expansion coefficient 1.1×10-5/℃ 1.1×10-5/℃ 1.1×10-5/℃ 1.1×10-5/℃ 1.1×10-5/℃
Temperature -100~+300 -100~+300 -100~+300 -100~+300 -100~+300
Hardness HRC≥40 HRC≥50 HRC≥40 HRC≥50 HRC≥50
Maximum load (Mpa) 150Mpa 200Mpa 150Mpa 200Mpa 200Mpa
Maximum line speed (m/min) 10 10 15 15 15
Lubricant in the form Surface coverage Embedded in the matrix Solid plug embedded
0.01-0.03mm
Tolerance with: Mating Housing Block assembly hole: H7 Mating shaft axis to match:e7/f7

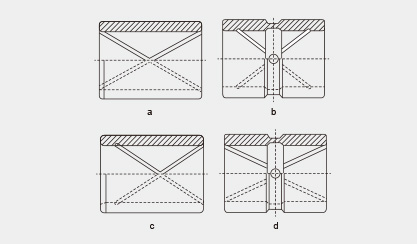

Sleeve diagram and Typical tank in the form
