Home / Products / FRB-650 Cast Bronze Bearings with Graphite

Products

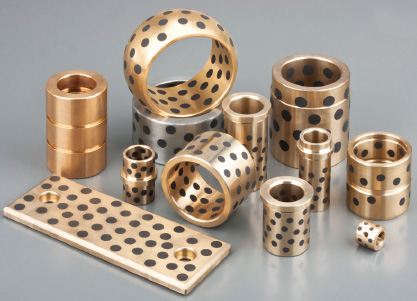

FRB-650 Cast Bronze Bearings with Graphite

Features

• Long-term use without maintenance;
• Designed for high static load and dynamic load;
• Has a low coefficient of friction and smooth, no "sticky" phenomenon;
• Resistant to dust, corrosion resistance, impact resistance and resistance to edge load capacity;
• Metal substrate has good shock absorption;
• Be able in a wide temperature range;
• Suitable for reciprocating, rotary and oscillating so frequent and difficult to form a film starts the occasion;
• Has a very low wear rate, long service life.

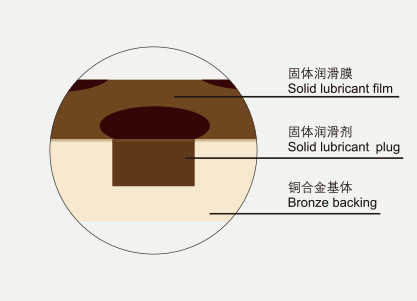

Structure

FRB-650 material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.

Main Metal Type

Grade 650 600S1 600S2 600S3 650S5 650HP
Material CuZn25Al5Mn4Fe3 CuSn5Pb5Zn5 CuAl10Ni5Fe5 CuSn12 CuZn25Al5Mn4Fe3 CuZn32Al5Ni3
Density 8.0 8.9 7.8 8.9 8 8
Hardness HB >210 >70 >150 >95 >250 >280
Yeild strength N/mm2 >750 >200 >600 >260 >800 >540
Yeild strength N/mm2 >450 >90 >260 >150 >450 >450
Elongation % >12 >15 >10 >8 >8 >0.3
Coefficient of linear expansion 1.9x10-5/℃ 1.8x10-5/℃ 1.6x10-5/℃ 1.8x10-5/℃ 1.9x10-5/℃ 1.8x10-5/℃
Max. temp. ℃ -40~+300 -40~+400 -40~+400 -40~+400 -40~+150 -40~+150
Max. load N/mm² 100 60 50 70 120 150
Max. speed (Dry m/min 15 10 20 10 15 15
Max. PV(Lubrication) N/mm²*m/min 200 60 60 80 200 200
Compression deformation 300N/mm² <0.01mm <0.05mm <0.04mm <0.05mm <0.005mm <0.005mm

The lubricant features and typical application

Lubricant Features Typical application
High purity graphite + additives Good wear resistance and chemical stability, temperature<400℃ Suite for general machines and under atmosphere.
PTFE+Additive Extremely low friction coefficient and good moist nature<300℃ Suite for water/sea lubrication, like ship, hydraulic turbine, gas turbine etc.

Chemical properties

chemical Concentration % Temperature ℃ 650# 650S1 650S2 650S3
Strong acid 5 20 × × × ×
Hydrochloric acid 5 20 ×
Hydrofluoric acid 5 20 × × × ×
Nitric acid 5 20 ×
Sulfuric acid 5 20 ×
Phosphate
Weak acid 5 20 × ×
Acetic acid 5 20 × ×
Formic acid 5 20 × ×
Boric acid 5 20 × ×
Citric acid
Alkali 10 20 × × × ×
Ammonia 5 20
Sodium hydroxide 5 20
Potassium hydroxide   20
Solvent
Acetone   20
Carbon tetrachloride   20
Ethanol   20
Ethyl acetate   20
Ethyl chloride   20
Glycerin
Salt     × × × ×
Of ammonium nitrate
Calcium chloride
Magnesium chloride
Magnesium sulfate
Sodium chloride
Sodium nitrate     × ×
Zinc chloride
Zinc sulfate
Gas     ×
Ammonia     × ×
Chlorine     × ×
Carbon dioxide     × × ×
Flue gas
Sulfur dioxide     ×
Hydrogen sulfide     ×
Nitrogen
Hydrogen
Lubricants and fuel
paraffin
Gasoline
Kerosene
Diesel fuel
Mineral oil
Other
Water
Seawater     ×
Resin
Hydrocarbons
