Home / Products / FRB-85H Sintering of solid lubricant bearing diffuse

Products

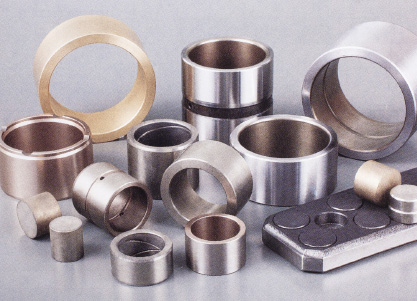

FRB-85H Sintering of solid lubricant bearing diffuse

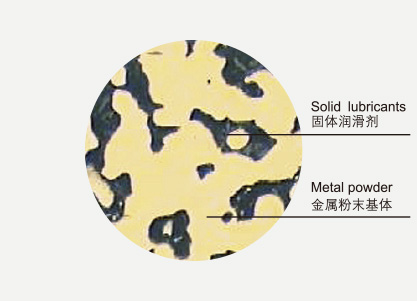

Structure

• Meet in dry friction conditions, can be maintenance-free;
• Has a high carrying capacity;
• Wide temperature range -200 ℃~ +600 ℃;
• You can re-radiation environment and vacuum environment;
• Material has good electrical properties, without the static phenomenon;
• You can dust conditions and corrosive environments;
• Materials as needed for re-processing.

Feature

FRB85H metal self-lubricating bearings made by powder sintering process, suitable for high load or fuel can dry friction conditions required under the conditions of work; the main materials include copper, iron base and stainless steel base, but also with the use of the bearing condition, the use of temperature, load, speed, and environmental requirements can choose, such as graphite, molybdenum disulfide solid lubricant such as different proportions, the solid lubricant materials uniformly distributed in the organization can continuously provide low friction bearing surface for the material, reducing the the friction coefficient and thus greatly improve bearing life, compared to more conventional powder metallurgy wear resistance and high temperature performance.

Metal-based materials

Copper Iron-based nickel-based
CuSn
CuSnPb
Fe
FeCu
FeNiCu
FeCrNi
Ni
NiCuFe

Solid lubricant

Material Graphite MoS2 WS2
Crystal structure Hexagon Hexagon Hexagon
Proportion 2.25 4.7 7.5
Friction factor in the air 0.1~0.18 0.08~0.12 0.09~0.17
Temperature ℃ -120℃~+600℃ -100℃~+400℃ -180℃~+600℃
Chemical resistance Well Well Well
Corrosion resistance Well Difference Difference
Resistant to nuclear radiation Well Well Well
Use in the air Well Well Well
In water use Well Difference Difference
Use in a vacuum Difference Well Well

Dry friction mechanism

As the solid lubricant layer structure of crystalline materials are all easily within the metal matrix material between adjacent molecules to form a low shear strength of the interface, the initial friction occurs due to metal wear, solid lubricant can easily be released into the bearing surface formed with the combination of mechanical grinding parts; this layer transfer film has a high carrying capacity and low friction coefficient and can thus greatly reducing the supply of continuous extended wear life, the other in the event of damage to the transfer film can be very short period of time to repair itself, which played a maintenance role.

Material composition and properties of the table

Material grades Copper Iron-based Nickel-based
FRB85HB1 FRB85HB2 FRB85HB11 FRB85HB12 FRB85HF14 FRB85HF18 FRB85HN22 FRB85HN23
CuSn
8613/6-1
CuSn
8613/12-1
CuSnPb
8313/6-1
CuSnPb
8413/8-1
FeNiCu
8310/8-3
FeCu
9404/8-2
NiFeCu
6033/10-2
FeCrNi
7218/20
Density g/cm3 6.8 6 7.2 5.8 6 5.9 6 5.8
Hardness HB ≥40 ≥50 ≥50 ≥50 ≥80 ≥50 ≥45 ≥55
Compressive trength Mpa 300 180 380 250 550 180 240 180
Maximum static load Mpa 100 50 100 50 100 80 100 100
Maximum dynamic load Mpa 50 25 50 25 50 40 50 50
Maximum line speed m/min 15 20 15 15 10 10 20 10
Max PV N/mm²*m/min 60 60 60 60 48 48 36 30
emperature ℃
-50~+150 -50~+150 -50~+150 -50~+150 0~+600 0~+450 -200~+650 -100~+750
Friction factor μ 0.12~0.18 0.10~0.15 0.15~0.22 0.12~0.18 0.30~0.45 0.30~0.45 0.25~0.40 0.35~0.50
Coefficient of linear expansion 10-6/K 18 18 18 18 13 13 12 18

Download

FANRONG to provide electronic catalog for all models.
